采用DMC型不飽和樹脂，產品規格可用內鉗塊調節，使用方便。

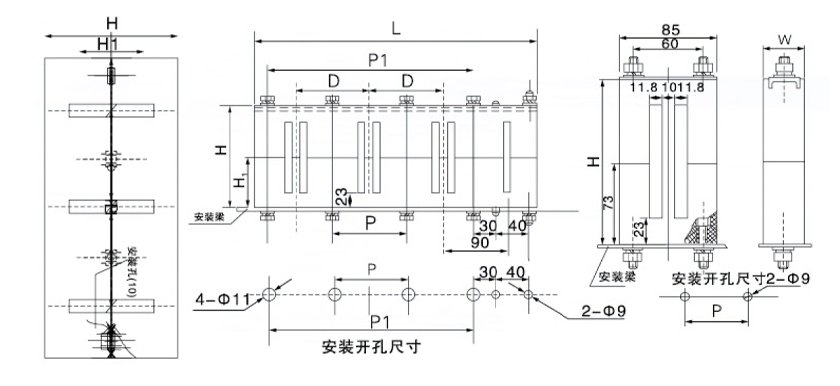

| 產品名稱 | 產品型號 | 長度(L) | 厚度(W) | 相數 | 相距(D) | 孔距(P) | 孔距(P1) |
| 絕緣母線框 | PMJ4-3單排 | 255mm | 36mm | 三相 | 80mm | 80mm | 220mm |
| 絕緣母線框 | PMJ4-3雙排 | 315mm | 36mm | 三相 | 100mm | 100mm | 280mm |
| 絕緣母線框 | PMJ4-4單排 | 320mm | 36mm | 四相 | 80mm | 80mm | 220mm |
| 絕緣母線框 | PMJ4-4雙排 | 380mm | 36mm | 四相 | 100mm | 100mm | 280mm |
| 絕緣母線框 | PMJ5B-3x3 | 385mm | 40mm | 四相 | 120mm | 120mm | 340mm |
| 絕緣母線框 | PMJ6B-3x3 | 460mm | 40mm | 三相 | 140mm | 140mm | 420mm |
| 絕緣母線框 | PMJ7B-3x3 | 460mm | 40mm | 三相 | 150mm | 150mm | 420mm |
| 絕緣母線框 | PMJ8B-3x3 | 505mm | 40mm | 三相 | 175mm | 175mm | 475mm |
| 零線夾 | PMJ4-N單排 | 65mm | 36mm | N相 | 40mm | ||
| 零線夾 | PMJ4-N雙排 | 85mm | 36mm | N相 | 60mm | ||
| 零線夾 | PMJ4-N三排 | 135mm | 40mm | N相 | 100mm | ||
| 零線夾 | PMJ4-N四排 | 158mm | 40mm | N相 | 120mm |
| 規格 | 6x60 | 6x80 | 8x80 | 8x100 | 10x60 | 10x80 | 10x100 | 10x120 | 12x120 | 10x125 | 12x125 |
| 高(H) | 110mm | 130mm | 130mm | 150mm | 110mm | 130mm | 150mm | 170mm | 170mm | 175mm | 175mm |
